AirBorn R Series Connectors
Molex/AirBorn R Series Connectors are a proven technology, delivering reliable performance in mission-critical applications over time. These connectors provide a wide range of termination, configuration, mounting, and hardware options. The R series connectors feature a rugged and reliable contact design, ensuring dependable performance even in extreme environments. These components have 0.075" (1.905mm) contact spacing and operate within a temperature range from -65°C to +125°C. Typical applications include aerospace, geophysical, industrial equipment, medical devices, space exploration, and telecommunications.
Features
- Available with the widest range of termination options
- Delivers high-reliability connector
- Four reliable points of contact
- MIL-DTL-55302 qualified
- Provides rugged and dependable contact design
- Supports high-density
- Utilizes proven flight-heritage technology
Applications
- Aerospace
- Defense
- Energy
- Geophysical
- Industrial
- Instrumentation
- Marine
- Medical equipment
- Network and storage
- Space exploration
- Telecommunications
Technical Specifications
| Parameters | Values |
|---|---|
| Contact Rating | 3A |
| Operating Temperature Range | -65°C to +125°C |
| Insulation Resistance | 5000MΩ |
| Durability | 5000 cycles |
| Contact Resistance Range | 3mΩ to 5mΩ |
Video

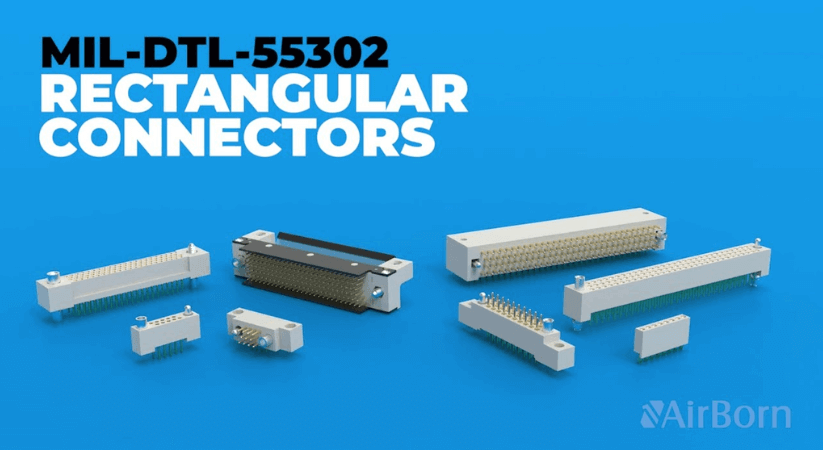

This AirBorn R Series Connectors video provides information about R Series and W Series connectors and contacts, and explains that these are MIL-DTL-55302 connectors.
