Description	Product Attribute	Similar
Manufacturer	KYOCERA AVX
Product Category	Antennas
Product Type	2.4GHz Antenna - 2.4GHz, 5GHz, Bluetooth, WiFi, WLAN, Zigbee
Product	PCB Antennas
Type	Embedded
Minimum Frequency	2.4 GHz
Maximum Frequency	5.825 GHz
Protocol - Bluetooth, BLE - 802.15.1	Bluetooth
Protocol - WiFi - 802.11	WiFi, WLAN
Protocol - ANT, Thread, Zigbee - 802.15.4	802.15.4 (ANT, Thread, Zigbee)
Mechanical Style	Stamped
Style	Metal
Gain	4.2 dBi, 4.7 dBi, 6.4 dBi, 6 dBi
Impedance	50 Ohms
VSWR	2:1
Power Rating	500 mW
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Number of Bands	2 Band
Mounting Style	Adhesive Mount
Termination Style	Connector
Center Frequency	2.4425 GHz, 7.25 GHz
Application	Embedded Design, Cellular, Headsets, Tablets, Gateway, Access Point, Handheld, Telematics, Tracking, Healthcare, M2M, Smart Grid, OBD-II
Length	41.1 mm
Width	14.6 mm
Height	9.5 mm
Series	1001435M0
Packaging	Bulk
Subcategory	Antennas

Attribute	Description
ECCN	EAR99
HTS	8517710000
TARIC	8517710000
RoHS Compliant	Yes RoHS Compliant
RoHS Exemption Number	N/A
Lead(PB) in Terminals	Call to Verify PB
REACH SVHC	No
REACH Substance Name	N/A

Quantity	Unit Price	Ext. Price
	1,30 €	1.872,00 €
	1,25 €	3.600,00 €
	1,22 €	6.441,60 €

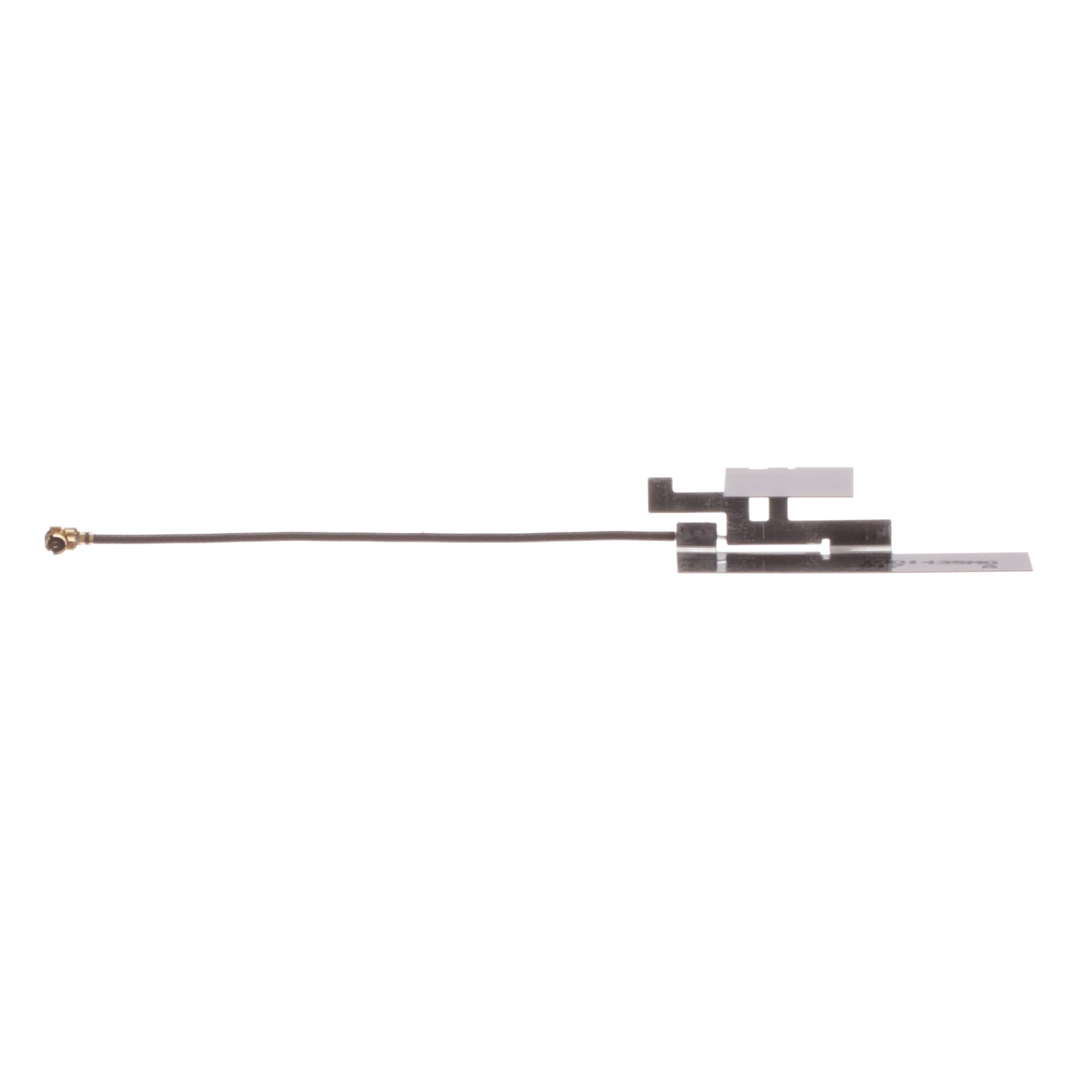

1001435M0-AA10L0070N

Manufacturer:
KYOCERA AVX

Mfr Part:
1001435M0-AA10L0070N

TTI Part:
Not Assigned

Datasheet

EDA / CAD Models

Specifications

Export and Environmental Classification

Documents

Datasheet

EDA / CAD Models

0In Stock

Bulk

Manage Cookie Settings

Product Gallery

1001435M0-AA10L0070N

Manufacturer: KYOCERA AVX

Mfr Part: 1001435M0-AA10L0070N

TTI Part: Not Assigned

Datasheet

EDA / CAD Models

Specifications

Packaging

Export and Environmental Classification

Documents

Datasheet

EDA / CAD Models

0In Stock

Bulk

Lead Time

RoHS/Lead

RoHS Compliance

Lead (Pb)

Manufacturer:
KYOCERA AVX

Mfr Part:
1001435M0-AA10L0070N

TTI Part:
Not Assigned
