AirBorn N Series Nano-D Rectangular MIL Spec Connectors
Molex / AirBorn N Series Nano-D Rectangular MIL Spec Connectors are built for use where reduced size and weight are required. These connectors have a rugged metal body that supports reliability in demanding conditions. The N series features a contact spacing of 0.025" (0.64 mm) and one- and two-row options. These devices come with 9 to 91 contacts, three points of contact, vertical, right-angle, I/O, and connector saver models, a metal body, and MIL-DTL-32139 qualification. Applications include air taxis, medical devices, petrochemical systems, satellites, and unmanned aerial vehicles.
Features
- 1 and 2 row options
- 3 reliable points-of-contact
- 9 to 91 contacts
- Metal body
- Vertical, right-angle, I/O, and connector saver models
Applications
- Air taxis
- Medical device applications
- Satellites
- Unmanned aerial vehicles
Technical Specifications
| Parameters | Values |
|---|---|
| Maximum Contact Rating | 1A |
| Wire Size | Stranded 30AWG, 32AWG, solid 30AWG standard |
| Voltage | 250Vrms, 60Hz |
| Durability | 200 cycles |
| Minimum Insulation Resistance | 5000MΩ @100Vdc |

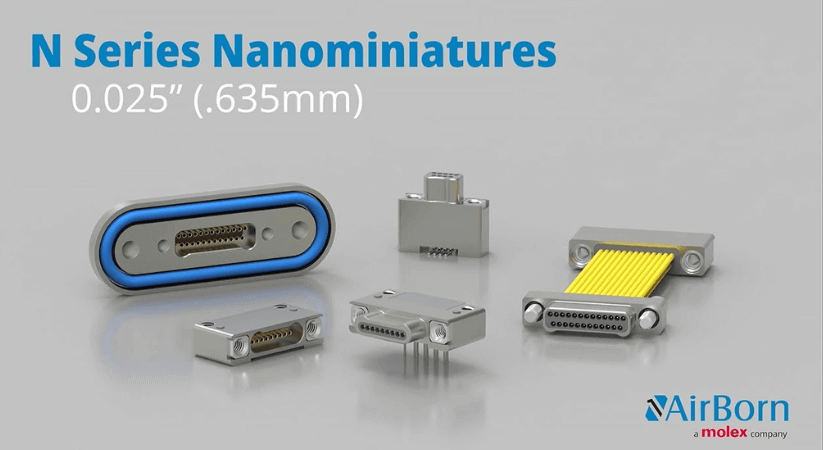

Video
This AirBorn N Series Nano-D Rectangular MIL Spec Connectors video describes the technical specifications and the features of the product. These connectors are a high-density, high-reliability connector family used in a wide variety of mission-critical applications where reduced size and weight are essential.
