AirBorn W Series Rectangular MIL Spec Connectors
AirBorn W Series Rectangular MIL Spec Connectors are rugged, MIL-DTL-55302 qualified connectors with 0.100" (2.54mm) contact spacing. They have 3 to 208 contacts and 1, 2, 3, 4, and miscellaneous row options. The W Series connectors are available in straight, right-angle, card-edge, I/O, and connector saver and have three reliable points of contact. The connector types include crimp connectors, power connectors, compliant terminations, surface-mount connectors, and stacking connectors/connector savers. These devices are used in aerospace, defense, industrial, and space applications.
Features
- 1, 2, 3, 4, and miscellaneous row options
- 3 to 208 contacts
- Durability of 500 mating cycles
- Straight, right-angle, card-edge (WB series), I/O, and connector savers are available
- Three reliable points-of-contact
Applications
- Aerospace
- Defense
- Industrial equipent
- Space
Technical Specifications
| Parameters | Values |
|---|---|
| Contact Rating | 5A |
| Wire Size | Stranded 22AWG |
| Operating Temperature Range | -65°C to +125°C |
| Minimum Insulation Resistance | 5000MΩ @ 500VDC |
| Voltage | 1000VRMS, 60Hz @ sea level 300VRMS, 60Hz @ 70,000 feet |

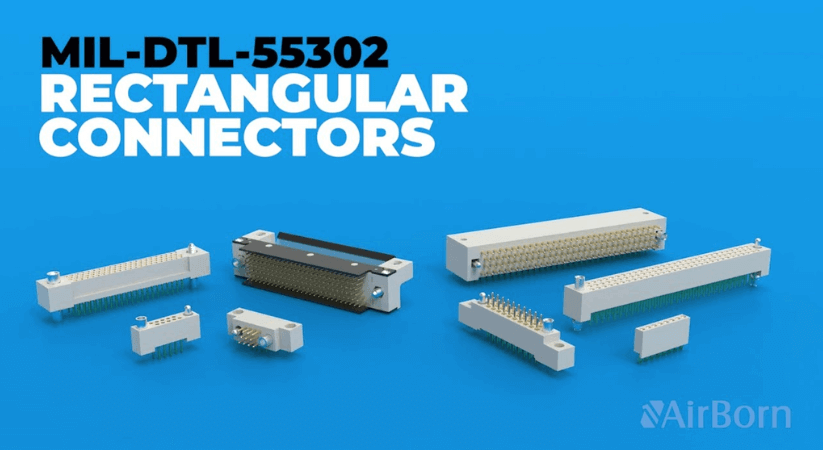

Video
This video on AirBorn R and W 55302 Connectors demonstrates that these devices meet or exceed MIL-DTL-55302 performance specifications. These rugged, mission-critical connectors are available in various configurations and terminations.
