Littelfuse SJxx25xx Series SCR Thyristors
Littelfuse SJxx25xx Series Silicon-Controlled Rectifiers (SCR) Thyristors are solid-state switches that are normally open circuits, capable of withstanding rated blocking/off-state voltage. The SJxx25xx SCR thyristors have unidirectional switching capability that is used in circuits where high surge currents or latching action is required. These SCR thyristors have a maximum low gate current trigger level of 6mA,10mA, and 35mA at 1.5V. The SJxx25xx SCR thyristors operate over a temperature range from -40°C to +150°C and have an average on-state current rating of 16A. These thyristors are ideal for use in a variety of applications, including converters, inrush current controllers, motor speed controls, phase control in heating, and rectifiers.
Features
- Halogen-free
- RoHS compliant
- UL 1557 certified
- Unidirectional switching capability
- Withstands rated blocking/off-state voltage
Applications
- Converters
- Inrush current controllers
- Low-power AC motor
- Motor speed controls
- Phase control in heating
- Rectifiers
Technical Specifications
| Parameters | Values |
|---|---|
| Average on-state current rating | 16A |
| Maximum low gate current trigger level @1.5V | 6mA, 10mA, and 35mA |
| Maximum current surge capability @60Hz | 350A |
| Lead material | Copper alloy |
| Operating temperature range | -40°C to +150°C |

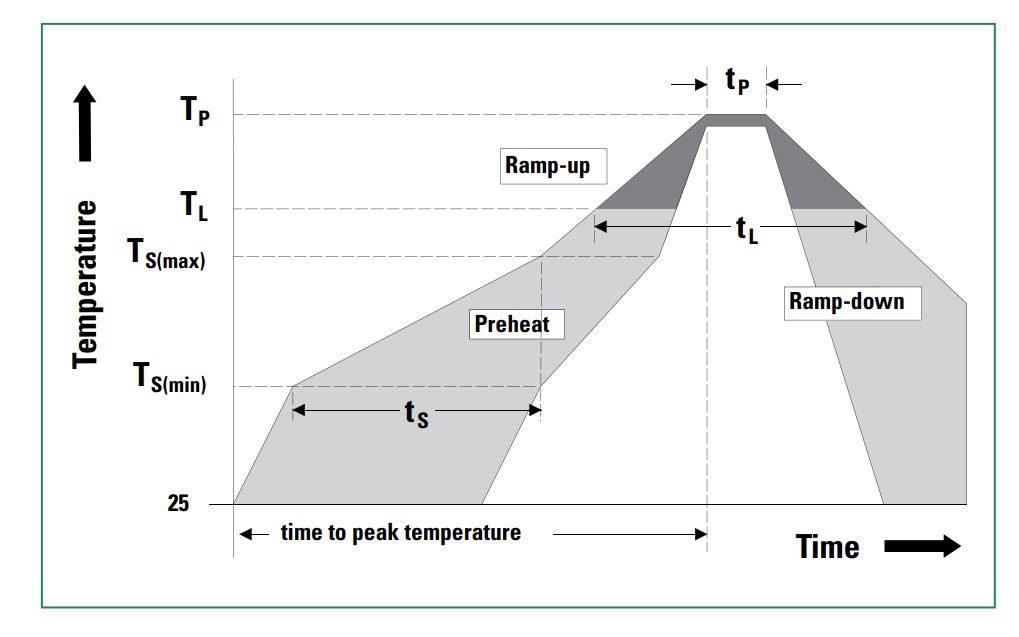

SJxx25xx Series SCR Thyristors Soldering Profile
