MEAN WELL HRPG-1000N3 Series Power Supplies
MEAN WELL HRPG-1000N3 Series Power Supplies are a 1000W single output AC/DC with ultra-high peak power supplies that include built-in capabilities such as auxiliary power, remote sense, and remote on-off control. HRPG-1000N3 power supplies deliver 320% short-duration peak power for motor applications and electromechanical loads that need substantially more power at startup and offer vast design flexibility for industrial applications. The HRPG-1000N3 power supplies operate at an input voltage rating range from 90VAC to 264VAC and an operating temperature range from -40°C to +70°C. Typical HRPG-1000N3 power supplies are used in industrial automation machinery, emergency lighting systems, and motor loading applications.
Features
- Auxiliary power
- Design flexibility
- Integrated fan on/off control
- Peak power capability of up to 320%
- Remote on/off control
- Remote sense
- Single output AC/DC
- Up to 94% high efficiency
Applications
- Aging equipment
- Emergency lighting systems
- Factory control
- Inductive and capacitive load
- Industrial automation machinery
- Laser related machine
- Motor loading
- Test and measurement instrument
Technical Specifications
| Parameters | Values |
|---|---|
| Input frequency range | 47Hz to 63Hz |
| Input leakage current | <1.2mA/240VAC |
| Input voltage rating range | 90VAC to 264VAC |
| Operating temperature range | -40°C to +70°C |
| Output voltage range | 12VDC to 48VDC |

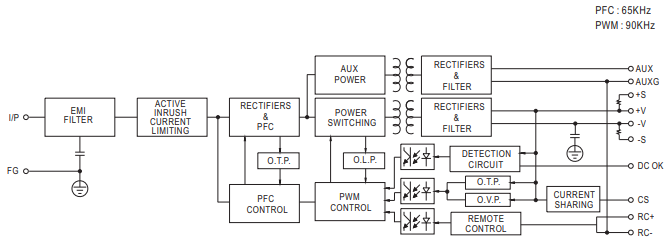

HRPG-1000N3 Series Power Supplies Block Diagram
