Panasonic EVPAK Series Light Touch Switches
Panasonic EVPAK Series Light Touch Switches offer a unique sharp and clear click operational feel, low contact resistance, small bouncing noise, high contact reliability, and a wide selection of operating forces. The EVPAK series light touch switches feature a high precision processing technology and know-how, enabling these switches to guarantee water and dustproof IP67 rating. These light touch switches have a maximum contact resistance of 100mΩ and a minimum insulation resistance of 100MΩ. The EVPAK switches operate at a temperature range from -40°C to +85°C and are ideal for various applications, including mobile phones and portable audio devices.
Features
- High contact reliability
- IP67 rated
- Low contact resistance
- Side-operational type
- Small bouncing noise
- Unique sharp and clear click operational feel
Applications
- Portable Electronic Equipment:
- Mobile phone
- Portable audio
Technical Specifications
| Parameters | Values |
|---|---|
| Maximum contact resistance | 100mΩ |
| Minimum insulation resistance | 100MΩ |
| Minimum durability | 500000 cycles |
| Dielectric withstanding voltage | 250VAC |
| Operating force | 1.6N |
| Operating temperature range | -40°C to +85°C |

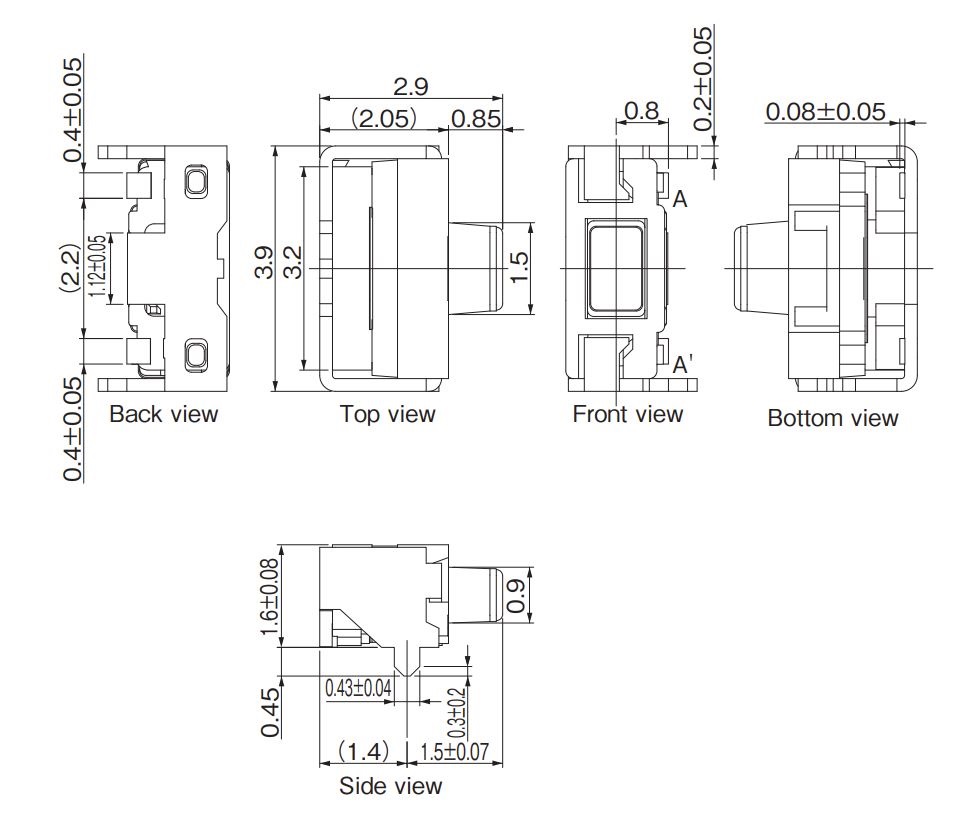

EVPAK Series Light Touch Switches Product Dimensions
All dimensions in mm
