TT Electronics LRMAH2512 Series High Power Resistors

TT Electronics LRMAH2512 Low Resistance Metal Alloy High Power Resistors feature welded construction for durability, low inductance for improved performance, and a zero-ohm jumper version for flexibility. These resistors meet AEC-Q200 standards for automotive applications, with Pb-free termination options, and utilize metal element technology with Cu termination finish for optimal conductivity. The LRMAH2512 power resistors offer a resistance range from 0.2mΩ to 10mΩ and a power rating of up to 6W. These high-power resistors are useful in battery monitoring, power supplies, steering control, and motor drives.

Features

Available in a zero-ohm jumper version
Durable welded construction ensures robustness
Minimal inductance for enhanced performance
Pb-free termination options
Qualification under AEC-Q200 standards, ensuring reliability for automotive applications
Utilizes metal element technology with Cu termination finish for optimal conductivity and reliability

Applications

Battery monitoring
Motor drives
Power supplies
Steering control

Technical Specifications

Parameters	Values
Resistance range	0.2mΩ to 10mΩ
Thermal impedance	4°C/W to 65°C/W
Maximum power rating	6W
Resistance tolerance	1%
Inductance	<2nH
Current rating	100A

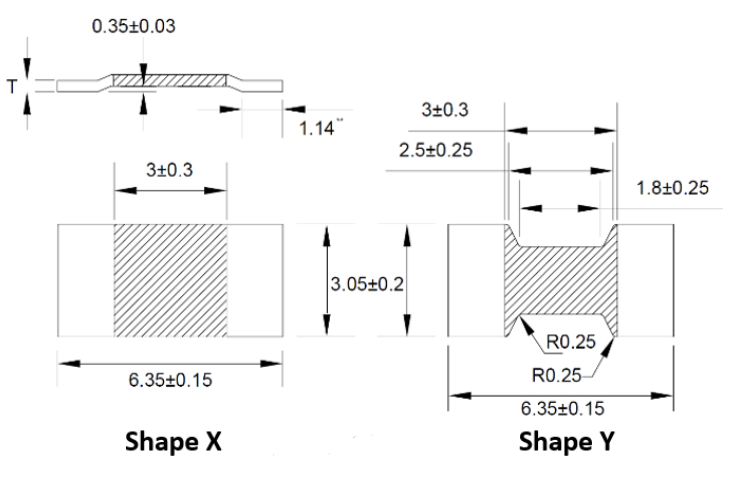

LRMAH2512 Series High Power Resistors Dimension Diagram

TT Electronics LRMAH2512 Series High Power Resistors Dimension Diagram

All dimensions in mm
