Bourns CSS2H-5930 Current Sense Resistors
Bourns CSS2H-5930 Current Sense Resistors are metal-strip resistors designed for accurate current measurement in high-current, low-resistance applications. These resistors use an EB-welded construction with low resistance values to support high power handling while maintaining stable electrical performance over temperature. The CSS2H-5930 resistors operate across a wide temperature range from -55°C to +170°C and offer low TCR. These current sense resistors are available in multiple resistance and power ratings and find applications in power modules, voltage division, and frequency converters.
Features
- AEC-Q200 qualified
- EB-welded metal strip construction
- High power capability
- Low resistance values
- Low Temperature Coefficient of Resistance (TCR)
- Low thermal EMF
- Stable resistance over time
Applications
- Battery management systems
- Current sensing
- Frequency converters
- Industrial equipment
- Power modules
- Voltage division
Technical Specifications
| Parameters | Values |
|---|---|
| Inductance | <3nH (R type Material) <5nH (K type Material) |
| Operating Temperature Range | -55°C to +170°C |
| Resistance Range | <0.2mΩ to 3mΩ |
| Resistance Tolerance | ±1% and ±5% |

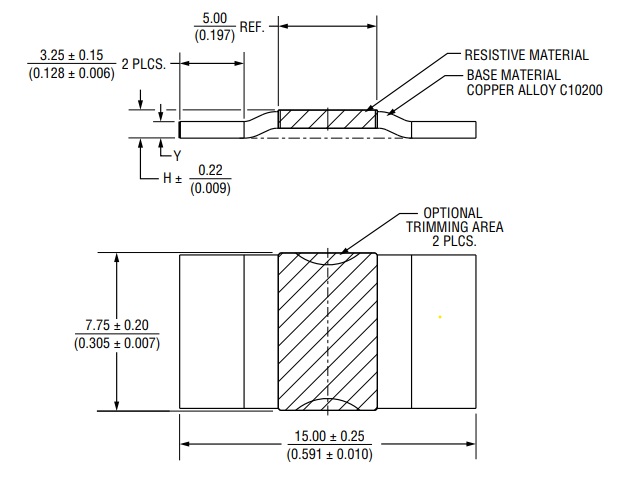

CSS2H-5930 Current Sense Resistors Product Dimensions
Dimensions in mm (inches)
