Bourns SM8SF-Q TVS Diodes

Bourns SM8SF-Q Series Transient Voltage Suppressor (TVS) Diodes provide overvoltage protection for electronic circuits. These diodes are available in unidirectional and bidirectional configurations with working peak reverse voltages from 24V_RWM to 36V_RWM. The SM8SF-Q TVS diodes are rated for a maximum peak pulse power dissipation of 7000W and can operate within a temperature range from -55°C to +175°C. These TVS diodes are housed in a compact DFN package measuring 8.1mm x 10.5mm. Typical applications include load switching, lighting systems, and protecting sensitive components from voltage transients.

Features

AEC-Q101 compliant
IATF 16949:2016 certified manufacturing
RoHS compliant
Surge specification compliance with ISO7637-2 and ISO16750-2

Applications

Clamping diode
High peak power applications
High temperature applications
Load switching and lighting

Technical Specifications

Parameters	Values
Breakdown Voltage Range	26.7V_BR to 44.2V_BR
Maximum Peak Pulse Power Dissipation	7000W
Maximum Reverse Leakage Current	10µA
Operating Temperature Range	-55°C to +175°C
Working Peak Reverse Voltage Range	24V_RWM to 36V_RWM

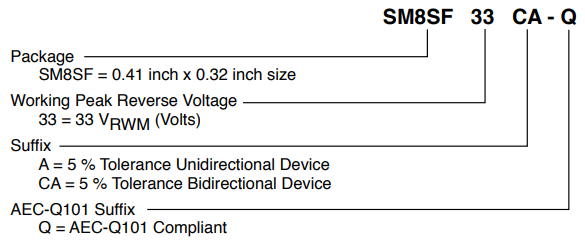

SM8SF-Q Series TVS Diodes Ordering Information

Bourns SM8SF-Q Series TVS Diodes Ordering Information
