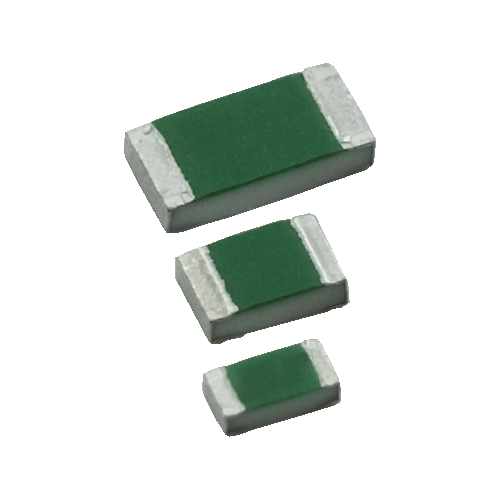

KOA Corporation 0,25%, 50ppm, High Precision Anti-Pulse Resistors

KOAs SG73G-series thick film resistors are designed for applications where high precision and pulse stability are essential.

The SG73G with a T.C.R. of ±50ppm/K and a tolerance of ±0.25% is ideal for precision designs such as high-accuracy sensing or voltage detection circuits in automotive and industrial applications. The special inner construction offers outstanding pulse load capability and higher rated power. The SG73G can be used in applications where MELF-resistors are not suitable.

Features

Outstanding pulse proof properties
High precision: ±0.25% or ±0.5%, ±50ppm/K
High power rating
0Ω to 1MΩ
Available in 0603, 0805 and 1206 inch
Improved high temperature reliability (-55°C to +155°C)
EU-RoHS compliant
AEC-Q200 tested

Applications

Automotive electronics
Industrial
Measuring instruments
Motor control units
Power conditioners/inverters
Power supplies
Smart meters
White goods

Technical Specifications

Parameters	Values
Tolerance	±0.25%, ±0.5%
Power rating range	0.2W to 0.5W
T.C.R	±50ppm/°C
Operating temperature range	-55°C to +155°C
Resistance range	10Ω to 1MΩ
