Amphenol FCI Minitek MicroSpaceXS 1.27mm Waterproof Connectors
Amphenol FCI Minitek MicroSpaceXS 1.27mm Waterproof Connector’s unique design meets LV214 Severity-2 and USCAR-T2V2 specifications. MicroSpaceXS connectors come in a staggered vertical and horizontal arrangement with PIP soldering, and tin or gold plating. These waterproof connectors feature an operating temperature range from -40°C to +130°C, a current rating of 3A, and a voltage rating of 48V. Typical applications include automotive lighting, battery management, HVAC, infotainment, and sensors.
Features
- Assures the right terminal insertion location and retention
- Color coding and Poka-Yoke polarization
- Mechanical Connector Position Assurance (CPA)
- Prevents accidental latch triggers and guarantees correct header and receptacle mating
- Satisfies increased power performance standards
- Stops visual mismatch
- Strong vibration and resistance to locking
- Terminal Position Assurance (TPA)
Applications
- Automotive Lighting
- Battery Management
- Camera
- HVAC
- Infotainment
- Sensor
Technical Specifications
| Parameters | Values |
|---|---|
| Current rating | 3A |
| Dielectric withstanding voltage | 500VAC |
| Insulation resistance | >100mΩ |
| Low-level contact resistance | <25mΩ |
| Terminal insertion force/terminal | <3N |
| Voltage rating | 48V |
| Operating temperature range | -40°C to +130°C |

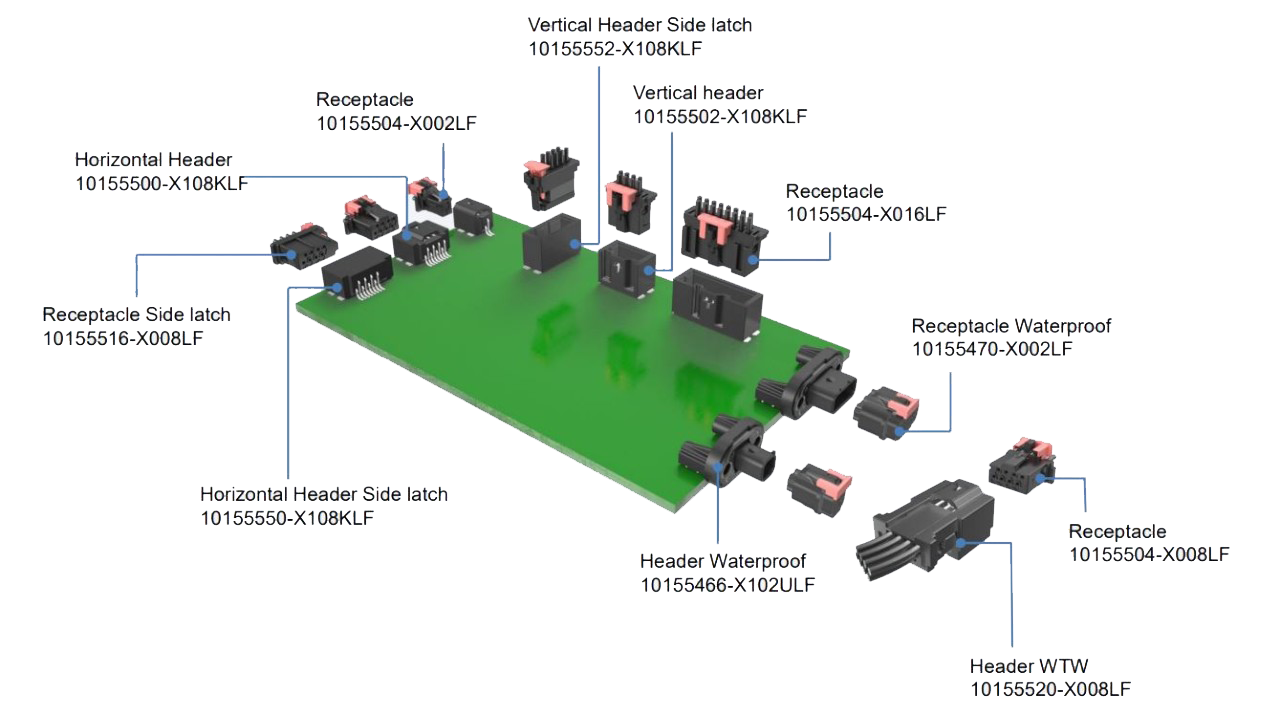

Minitek MicroSpaceXS 1.27mm Waterproof Connectors Product Overview
