Aptiv APEX 1.2 SensoMate Automotive Connectors
Aptiv APEX 1.2 SensoMate Automotive Connectors are heavy-duty performing devices with robust design and high current ratings. These connectors have a maximum vibration rating of 30G and a maximum operating temperature of +150°C. The APEX 1.2 SensoMate connectors are compatible with VDA and USCAR 1.2 device interfaces. These connectors are compliant with USCAR design guidelines and performance standards. The connectors are available in 2, 3, and 4 cavity count variants. The connectors find application in on-engine sensors and actuators.
Features
- Achieves the highest current rating
- Complies with USCAR design principles and achieves performance benchmarks
- Constructed with a superior single-piece housing for lasting durability
- Designed with ergonomic considerations in mind
- Exhibits robust, heavy-duty performance capabilities
- Incorporates Primary Lock Reinforcement (PLR) for detecting partially installed terminals
- Interfaces seamlessly with VDA and USCAR 1.2 devices
- Sealing class of S3
Applications
- Actuators
- On-engine sensors
Technical Specifications
| Parameters | Series |
|---|---|
| Operating temperature range | -40°C to +150°C |
| Maximum vibration | 30G |
| Cavity count (ways) | 2, 3 ,4 |
| Centerline spacing | 40mm |
| Cavity configurations | 1.2mm |
APEX 1.2 SensoMate Automotive Connectors Dimensional Diagram

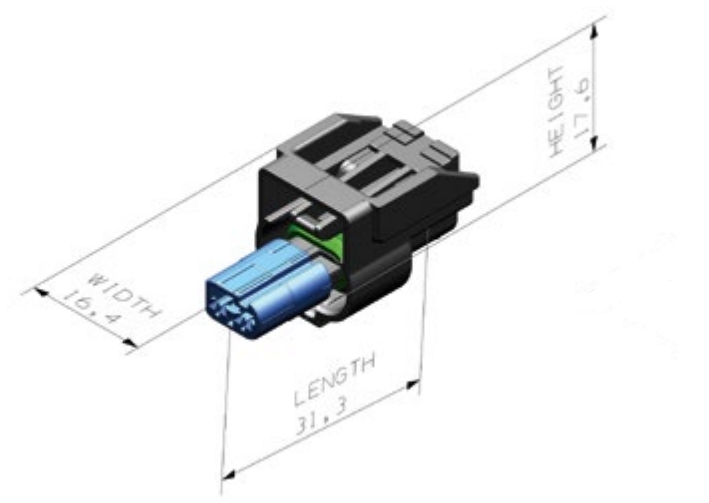

SensoMate 2W Female Pre-Assembly

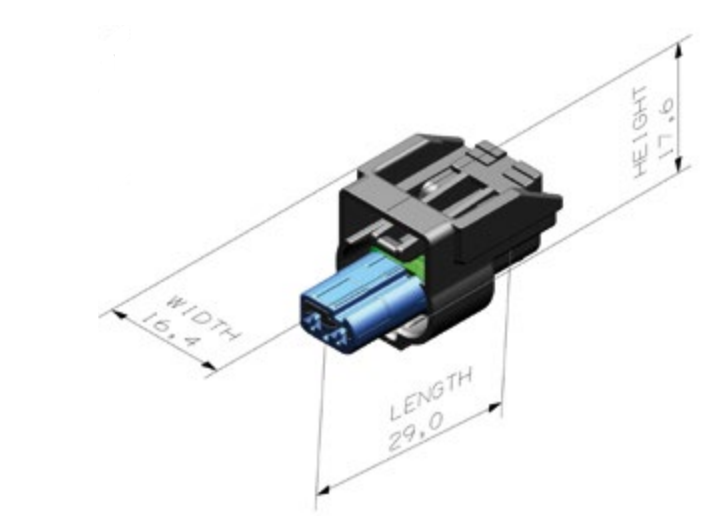

SensoMate 2W Female Assembly
