Bourns PTVS6-058C-TH and PTVS6-076C-TH TVS Diodes

Bourns PTVS6-058C-TH and PTVS6-076C-TH Transient Voltage Suppression (TVS) Diodes are high-current diodes that offer bidirectional port protection and are available with standoff working voltage ratings of 58V and 76V. The PTVS6-058C-TH and PTVS6-076C-TH TVS diodes meet IEC61000-4-5 8/20μs current surge requirements. These TVS diodes operate within a temperature range from -55°C to +125°C. Ideally, PTVS6-058C-TH and PTVS6-076C-TH diodes are used in high-power DC bus protection.

Features

Bidirectional protection
High surge capability
Low clamping voltage under surge
RoHS compliant
Stable electrical behavior over temperature

Applications

High-power DC bus protection

Technical Specifications

Parameters	Values
Parameters	PTVS6-058C-TH	PTVS6-076C-TH
Capacitance at 10kHz, 1Vrms	4.5nF	3.3nF
Operating Temperature Range	-55°C to +125°C
Peak Current Rating per 8/20μs IEC61000-4-5	6kA
Maximum Standby Current	10μA
Standoff Working Voltage	58V	76V

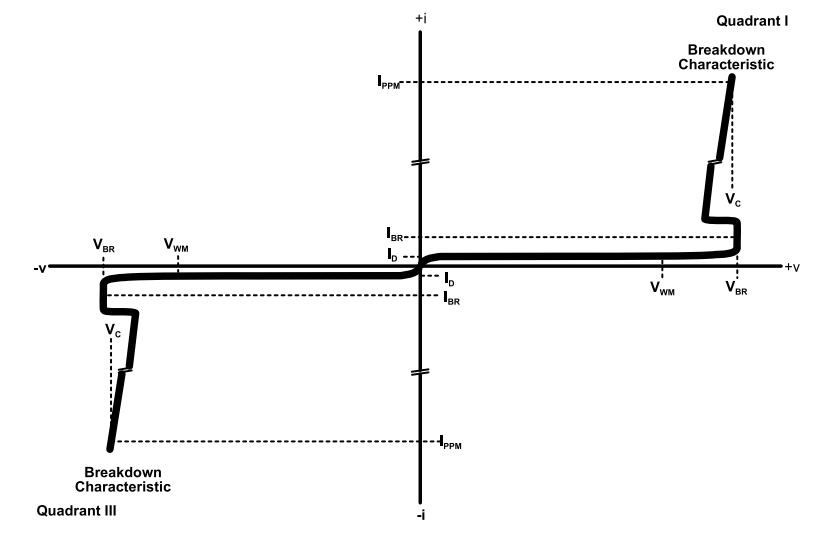

PTVS6-058C-TH and PTVS6-076C-TH TVS Diodes V-I Characteristics

Bourns PTVS6-058C-TH & PTVS6-076C-TH High Current TVS Diodes V-I Characteristics
