Kingbright KPG-1005 Series SMD-LEDs
Kingbright KPG-1005 Series SMD-LEDs are super-flat and come in small 0402 packages with a thickness of 0.2mm. The KPG-1005 SMD-LEDs are available in red (624nm), orange (605nm), green (571nm), yellow (589nm), and blue (467nm). These KPG-1005 SMD-LEDs include a wide viewing angle of 120° and feature an operating temperature range from -40°C to +85°C. Kingbright KPG-1005 SMD-LEDs are ideally used in membrane keyboards, status indicators, flat backlights, and healthcare applications.
Features
- 120° wide viewing angle
- Compatible with automatic placement equipment
- Ideal for backlight and indicator
- Low power consumption
- RoHS compliant
Applications
- Flat backlights
- Healthcare applications
- Home and smart appliance
- Membrane keyboards
- Status indicator
- Wearable and portable devices
Technical Specifications
| Parameters | Values |
|---|---|
| Dimensions | 1mm x 0.5mm x 0.2mm |
| Moisture sensitivity level | 3 |
| Operating temperature range | -40°C to +85°C |
| Packaging | 2000pcs/reel |
| Reverse voltage | 5V |

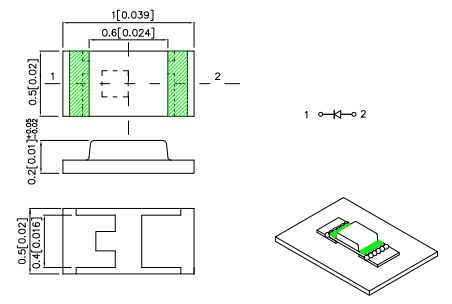

KPG-1005 Series SMD-LEDs Package Dimensions
Dimensions in mm
