Kingbright KPB-2012SURKCGKC Bi-Color SMD LED
Kingbright KPB-2012SURKCGKC Bi-Color SMD LED is available in red and green colors and comes in a small package size of 2mm x 1.25mm x 1.1mm. The red LED offers a luminous intensity of 200mcd at IF 20mA, while the green LED offers a luminous intensity of 55mcd at IF 20mA. This bi-color SMD LED includes a colorless clear lens with a viewing angle of 150° and consumes less power. The KPB-2012SURKCGKC SMD LED features an operating temperature range from -40°C to +85°C. Typically, KPB-2012SURKCGKC bi-color SMD LED is used in status indicators, backlights, home and smart appliances, and healthcare applications.
Features
- 150° wide viewing angle
- Bi-color
- Low power consumption
- RoHS compliant
Applications
- Backlight
- Healthcare applications
- Home and smart appliances
- Status indicators
- Wearable and portable devices
Technical Specifications
| Parameters | Values | |
|---|---|---|
| DC forward current | 30mA | |
| Dimensions | 2mm x 1.25mm x 1.1mm | |
| Luminous intensity | Red LED | 200mcd at IF 20mA |
| Green LED | 55mcd at IF 20mA | |
| Moisture sensitivity level | 3 | |
| Operating temperature range | -40°C to +85°C | |
| Package | 2000pcs/reel | |
| Power dissipation | 75mW | |

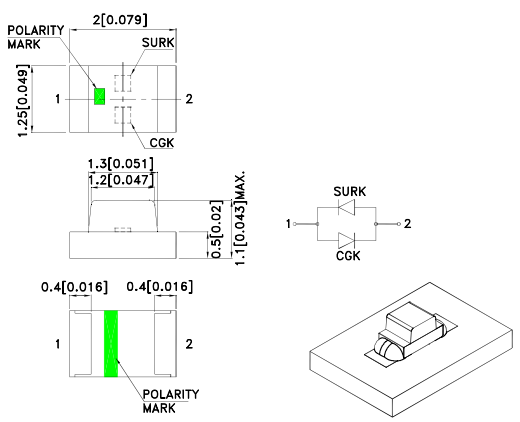

KPB-2012SURKCGKC Bi-Color SMD LED Package Dimensions
Dimensions in mm
